10" Heavy Duty Linear Actuator - NEW.  Nice Price!

This heavy duty linear actuator is perfect for operating tonneau covers, motorized trunks & hoods, amp racks and whatever else you may imagine!

• Built-in adjustable limit switch allows for custom run times
• 10:1 Gear Ratio for fast operation
• Built in clutch prevents damage from overextension
• High torque motor
• Permanently lubricated sealed shaft
• Contracted Length: 19" (48.26 cm)
• Fully Extended Length: 29" (73.66 cm)
• Power Draw: 15 amps max
• Travel speed: .354 inches/sec (9mm/sec) at 50% load

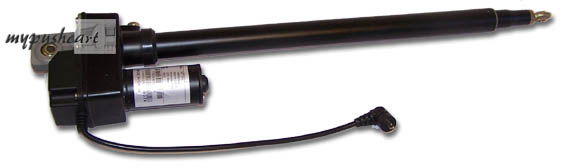

This auction for the the linear actuator as shown.  It does not include any additional hardware.   There are two wires that control the actuator.  Switch 12vDC power/gropund from one to the other reverses direction of travel.



Now available:  Wiring/Relay/Switch Kit.  Part # LADKIT  $29.95

Includes:

• 2 female DIN connectors that plug in to the linear actuators
• Up/Down rocker switch
• 2 relays and a prewired harness
• All the required connectors to plug the relay harness into the switch
• One wiring kit can control up to 2 actuators
• Instructions

This wiring/switch kit is sold separately and is NOT included with the actuator.  Click here to buy!
