120 PSI Compressor Package for Air Locker System



This package comes complete with a 12v Air Compressor, 120 PSI Pressure Switch, and a .5 Gallon Tank and all the fittings you'll need to connect them.  Compact and easy to install, this package is a perfect fit for for use with your air locker system. These high performance components make this package on of the most versatile and affordable packages out there.

Features

Separate Component Mounting - Unlike comparable compressor packages where the compressor is bolted to the tank, the compressor and tank in this kit mount separately allowing for more installation options in tight spaces.

Moisture and Dust Resistant - The compressor is a sealed unit so it is resistant to moisture and dust.  You don't have to worry about making protective contraptions to keep the compressor dry.  You can mount it outside underneath a vehicle without worrying about damaging the compressor.  A "snorkel" remote intake system is included to ensure clean air intake even if the unit is mounted outside the vehicle.

Oil-less Design - Because of the compressor's oil-less design, you never have to worry about adding oil or what position you are mounting the compressor in.  Comparable models require that you add oil periodically.  With oiled compressors you must mount the compressor right side up or else it will not lubricate properly causing damage.  This compressor can be mounted in virtually any position.

Steal Braided Leader Hose With Check Valve - The steel braided leader hose is not affected by the heat coming off of the compressor or other heat that may be present.  The built-in check valve prevents air leakage and reduces wear and tear on the compressor.

More Power - Most comparable compressor systems have a pressure switch that cuts out at 105 PSI.  The pressure switch in this kit cuts off at 120 PSI supplying more air, faster.

Compressor Specifications:

• 12-volt
• Permanent Magnetic Motor
• Duty Cycle: 9% @ 100 PSI
• Max Working Pressure: 120 PSI
• Amp Draw: 10 amps
• Inlet Filter Assembly Included
• Dimensions: 7.5"L x 2.1"W x 4.3"H

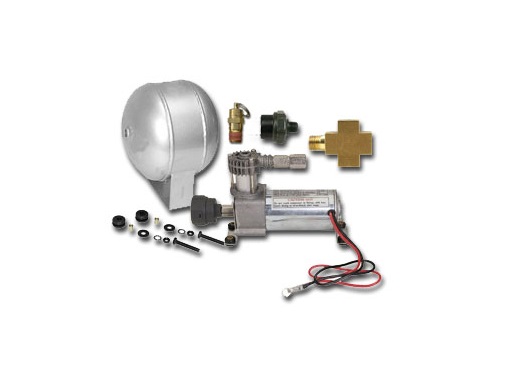

This Package Includes:

• 12v Air Compressor
• 90 PSI on, 120 PSI off Heavy Duty Pressure Switch
• 0.5 Gallon Air Tank
• Steel Braided Leader Hose w/ Inline Check Valve
• 155 PSI Safety Release
• Mounting Hardware
• 4-Way Manifold
• Compression Outlet Fitting
