150 PSI 100% Duty On-Board Air System w/ Tire Inflator Kit
Here's a great onboard air system for air horns, air suspension, tire inflation....or all 3! The system comes complete with a 150 psi, 100% duty compressor, a 2.5 gallon air tank, pressure switch, 35' tire inflation hose w/chuck & storage case, all the air fittings you'll need to put it all together, plus a complete installation/operation manual!
Flexible Installation.
Unlike lesser compressors, the compressor is a sealed water and dust resistant system. That means you can mount it under your vehicle (a body rail is a GREAT location) where it's out of the way.
The kit also includes our "snorkel" system.
This is a special intake hose and filter that you can use to draw clean, dry air into the system, even when the compressor is mounted in an area that gets wet or dirty. This gives you greater flexbility for installation and longer compressor life.
Built for Performance.
The compressor is powerful. It delivers the pressure needed to drive air horns to their full output. Remember all those ads you saw for "152 dB Train Horns"? Those horns will only put out 152 db with a 150 psi compressor like this one. Plus, there's enough output to fill your air suspension bags or run some air tools, like an impact wrench. And because the compressor is rated for 100% duty, you can also fill your tires without worrying about damaging the system.

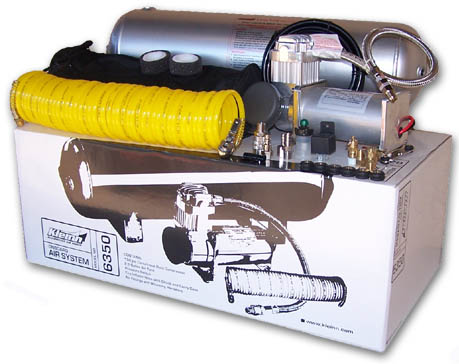

Kit Includes:
- 150 psi compressor
- 2.5 Gallon air tank
- 105/145 psi pressure switch
- Braided steel leader hose with in-line check valve
- Safety release valve
- Drain cock
- Compression fitting for output to air horns
- Compressor mounting hardware
- Tank mounting hardware
- "Air Snorkel" with mounting clip
- Air intake filter
- (2) Air filter cartidges
- 35' coil tire inflation hose w/metal chuck
- Quick-release connector for attaching tire inflator to tank
- Zippered storage case for tire inflation hose
- Complete installation and operation manual
- Inline check valve
Specifications
- Max working pressure: 150 psi
- Air tank capacity: 2.5 Gallon
- Overall size: 9" x 4" x 7" (compressor); 23.50" x 6" x 7.5" (tank)
- Duty Cycle: 100% @ 100 psi
- Amp Draw: 17 max
- 1.48 CFM @ 0 psi, .81 CFM @ 100 psi
- Fill time 0-145 psi = 4:20
- Refill time 110-145 psi = 1:21
- 1-Year Warranty - we're an authorized dealer
